USCG 3636-SA-4
STEPS
Stores
50 Tons
Lube oil
13 Tons
Cargo
2105 Tons
Fuel oil
1860 Tons
Fresh water
108 Tons
Ballast
0 Tons
SOLUTION:
Fwd Draft
08'- 11.5''
08.958'
Aft Draft
15'- 11.5''
15.958'
Mean Draft
12'- 05.5''
12.458'

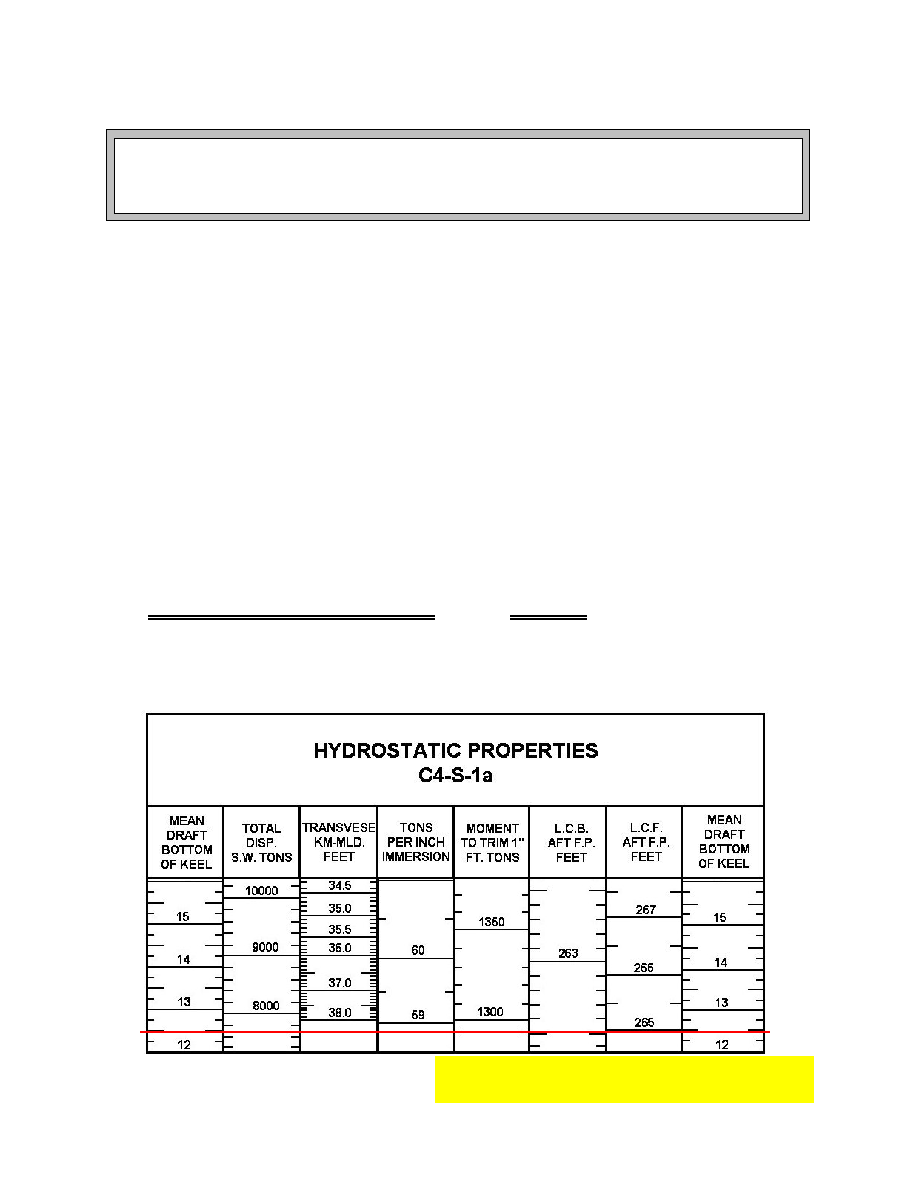

Hydrostatic Properties
C4-S-1a, Sheet 3
Displacement
7,675
The SS AMERICAN MARINER has the following drafts: FWD 08'-11.5", AFT 15'-11.5".
Upon completion of loading and bunkering the items listed will be on board. Use the white
pages of The Stability Data Reference Book to determine the minimum GM required to
meet a one compartment standard.
Red = table values, etc.
Green = ANSWER
LEGEND:
Blue = information provided.
Black = calculated values.
LIGHT SHIP DISPLACEMENT IS 7675
if Mean Draft is LESS THAN 12' 06"
Principles of Stability
Stability and Trim Calculations - Required GM - American Mariner -
Required GM to Meet One Compartment Standard
3636-sa-4
Page 1 of 3
