USCG 1091-SA-4
STEPS
Stores
50 Tons
Lube oil
13 Tons
Cargo
3390 Tons
Fuel oil
2580 Tons
Fresh water
175 Tons
Ballast
345 Tons
SOLUTION:
Fwd Draft
09'- 00.0''
09.000'
Aft Draft
15'- 11.5''
15.958'
Mean Draft
12'- 05.8''
12.479'

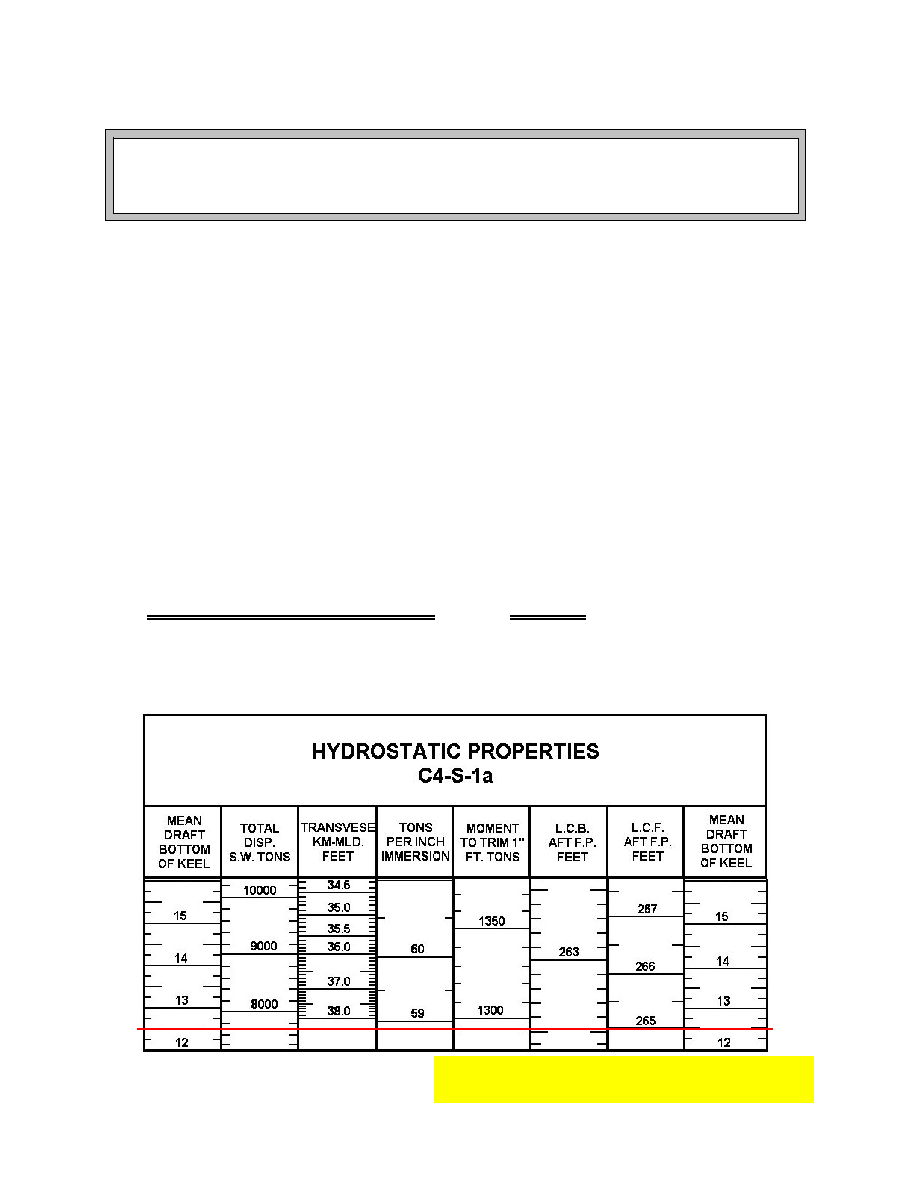

Hydrostatic Properties
C4-S-1a, Sheet 3
Displacement
7,675
The SS AMERICAN MARINER has the following drafts: FWD 09'-00", AFT 15'-11.5".
Upon completion of loading and bunkering the items listed will be on board. Use the white
pages of The Stability Data Reference Book to determine the minimum GM required to
meet a one compartment standard.
Red = table values, etc.
Green = ANSWER
LEGEND:
Blue = information provided.
Black = calculated values.
LIGHT SHIP DISPLACEMENT IS 7675
if Mean Draft is LESS THAN 12' 06"
Principles of Stability
Stability and Trim Calculations - Required GM - American Mariner -
Required GM to Meet One Compartment Standard
1091-sa-4
Page 1 of 3
